Epic Powder is a technology-driven enterprise specializing in the research, development, and manufacturing of advanced powder processing systems. Under the technical guidance of our German and British consultants, we design and produce a comprehensive range of deep-processing equipment, including various types of Jet Mills, Mechanical Mills, Air Classifiers, Three-in-One Laboratory Mill/ Classifiers, Powder Coating & Modification Machines, Multi-Rotor Mills, and specialized Lithium Battery Crushing & Separation Systems.
Our powder processing equipment serves a vast array of industries: Chemical, Food, Pharmaceutical, Non-Metallic Minerals, Metallurgy, Building Materials, Battery Materials, Additives, Health Products, New Materials, New Energy, and Specialty Materials. Engineered by our technical team, complete powder processing lines from Epic Powder are successfully operational worldwide, including in South Korea, Malaysia, Australia, the Philippines, Indonesia, India, Pakistan, Egypt, Turkey, the Middle East, Greece, Bulgaria, Russia, and beyond.
We provide complete solutions from raw material to finished product, encompassing project consulting, sample testing, engineering design, equipment selection, and technical upgrades. Our core design philosophy is market-oriented, committed to offering “One Client, One Design” – customizing solutions to meet each customer’s unique requirements.
I. Electrode Sheet Crushing & Delamination Equipment

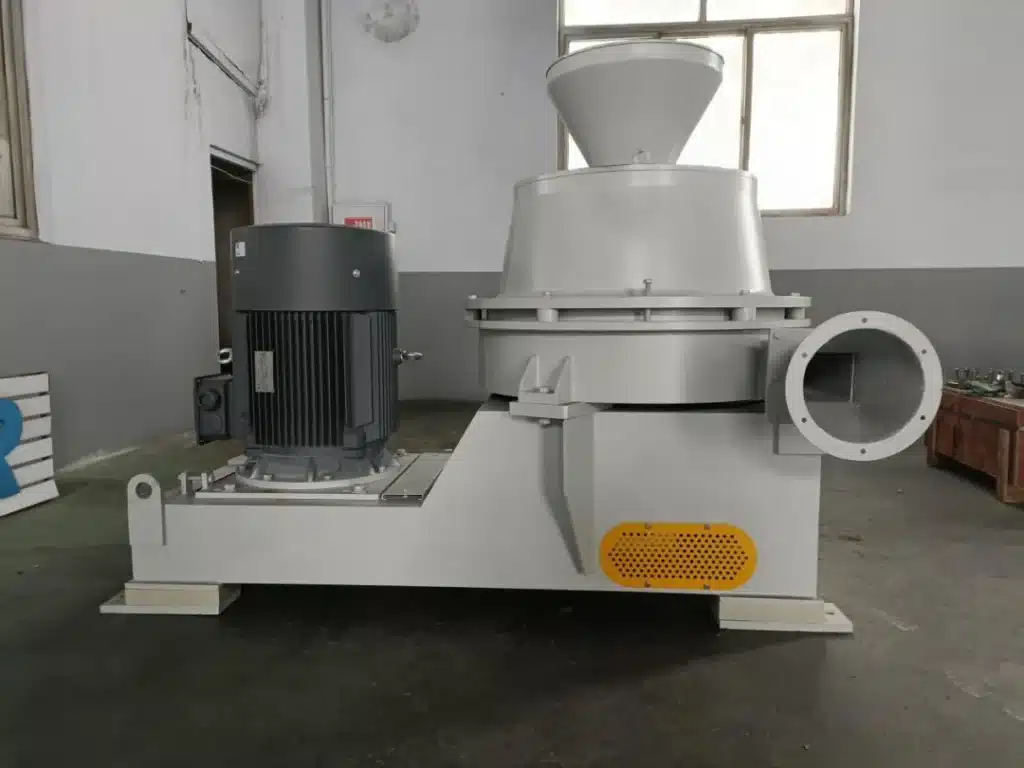

1. Turbo Mill
- Principle & Features: Utilizes conical rotor and stator with adjustable clearance. Rotor tip speed can reach 120 m/s. Material is subjected to high-speed impact, shear, and friction between the rotor and stator to achieve electrode sheet delamination. External sınıflandırma effectively separates electrode fragments from active material powder.

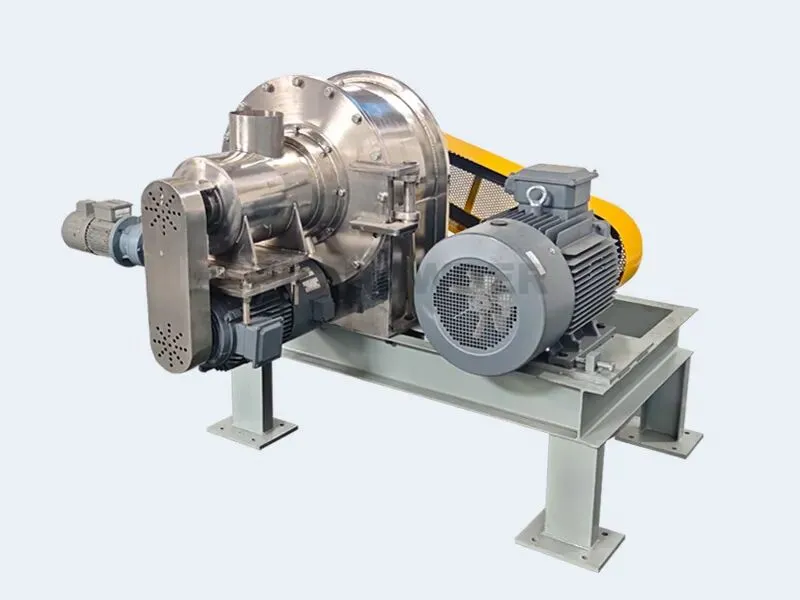

2. Horizontal Classifying Mill
- Principle & Features: Composed of a crushing disc and hammers. The grinding chamber is divided into two delamination zones. The first zone performs coarse crushing/delamination, while the second zone connects to the classification area for fine delamination and assists the sınıflandırıcı wheel in separation. The crushing/delamination components are high-speed balanced, achieving tip speeds up to 120 m/s. Components can be customized in different specifications and materials based on material properties or specific requirements.

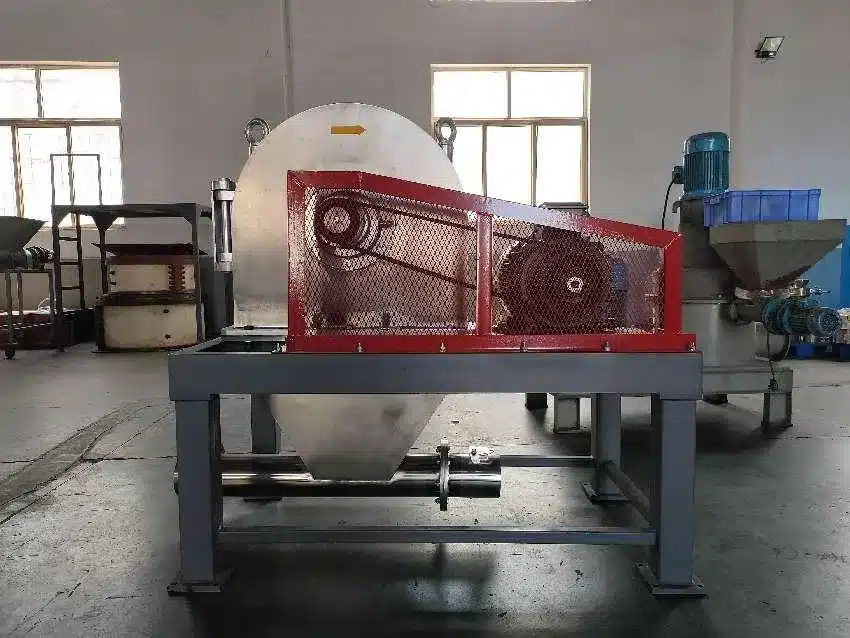

3. Pin Disc Mill (De-agglomerator)
- Principle & Features: Two pin discs inside the mill rotate at high speed in opposite directions. Product fineness is adjusted by the discs’ speed. Easy to clean by simply opening the mill door. Suitable for materials with Mohs hardness not exceeding 3. Features screen-less design for smooth discharge, high capacity, and low operating cost. Equipped with dual drive, it can achieve linear speeds over 200 m/s for greater crushing force. It de-agglomerates coarsely delaminated powder. When combined with an external classifier, it enables effective separation of active powder from electrode fragments, significantly reducing aluminum impurity content in the final powder.
II. Powder & Fragment Separation/Screening Equipment

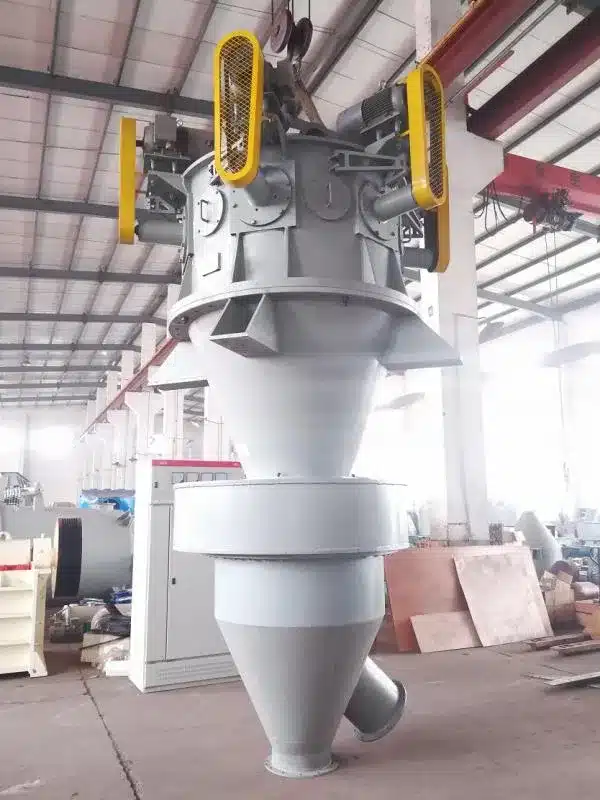

Hava Sınıflandırıcısı
III. Active Powder Milling Equipment
1. Jet Mill
- Principle & Features: Filtered and dried compressed air is injected at high speed into the grinding chamber via Laval nozzles. Particles are repeatedly collided, abraded, and sheared at the intersection of multiple high-pressure air streams. The ground material is carried by the upward airflow to the classification zone. The centrifugal force from the high-speed classifying wheel separates coarse and fine particles. Qualified fine particles pass through the wheel to cyclones/dust collectors; coarse particles fall back to the grinding zone for further milling.
2. Multi-Rotor Mill (Drying De-agglomeration Mill)
The Multi-Rotor Mill, was designed under the guidance of our German and British technical consultants. It excels not only in efficient grinding but also in drying, de-agglomeration/dispersing, and modification. Multiple rotor discs (up to 10) are mounted on a vertical shaft. Each disc has uniformly distributed blades, with adjacent blades forming honeycomb-like channels (up to 1600 channels in the largest model). High-speed rotation creates turbulent airflow within these channels. The liner, often corrugated or multi-toothed, promotes turbulence and enhances grinding, shearing, and impact forces.
Destansı Toz
Destansı Toz is specialized in fine powder processing technology for mineral industry, chemical industry, food industry, pharama industry, etc. Our team has more than 20 years experience in Various powders processing and had ever designed and installed the biggest Jet Mill Line for ultra-fine barite powder production line in China.
We are a professional supplier of powder processing projects, especially powder milling, powder classifying, powder dispersing, powder classifying, powder surface treatment and waste recycling. We supply consultancy, testing, project design, machines, commissioning and training. Contact us to have your powder solution today.
“Okuduğunuz için teşekkürler. Umarım makalem yardımcı olmuştur. Lütfen aşağıya yorum bırakın. Ayrıca EPIC Powder çevrimiçi müşteri temsilcisiyle de iletişime geçebilirsiniz. Zelda Daha fazla bilgi için lütfen iletişime geçin.”
— Jason Wang, Senior Engineer
