I. Definition and Types of Jet Mills
A jet değirmeni, also known as an air jet pulverizer or fluid energy mill, is an ultrafine grinding device that utilizes the energy of high-velocity airflow or superheated steam to cause intense impact, collision, and friction between particles, thereby achieving particle size reduction. The core principle of jet mills is to accelerate material particles to extremely high speeds using compressed air. Inside a specially designed grinding chamber, particles collide violently with each other, resulting in effective pulverization.
Jet mills are characterized by uniform particle size distribution, high product purity, high activity, a high degree of automation, and excellent suitability for low-melting-point and heat-sensitive materials. Since particle-to-particle interaction is the dominant grinding mechanism, grinding efficiency is high and heat generation is minimal, preventing thermal degradation or melting of the material.
Jet mills are widely used for ultrafine and fine grinding in industries such as non-metallic minerals, pharmaceuticals, chemicals, metallurgy, and advanced materials.
Common industrial jet milling equipment includes:
- Flat (Disc) Jet Mill
- Circulating Pipe Jet Mill
- Opposed Jet Mill
- Akışkan Yataklı Jet Değirmeni
- Target Jet Mill
II. Working Principles and Characteristics of Various Jet Mills

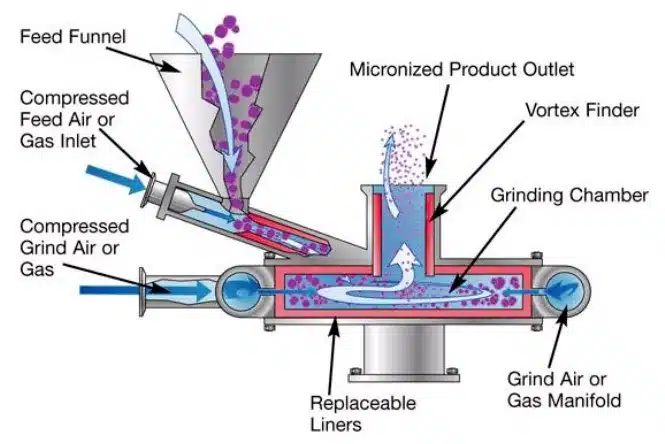

2.1 Flat (Disc) Jet Mill
The flat jet mill, also known as the disc jet mill, was first successfully developed by Fluid Energy Company (USA) in 1934. It is one of the earliest and most widely used jet mills in industry.
2.1.1 Working Principle
Material is accelerated through a jet feeder nozzle and introduced into the grinding chamber. Driven by a rotating airflow, particles undergo mutual collision, friction, and shear, resulting in pulverization.
Fine particles are carried by the airflow toward the central outlet pipe of the grinding chamber and spiral downward into a cyclone separator for collection. Exhaust gas is discharged through the exhaust pipe. Coarse particles are thrown toward the chamber wall by centrifugal force and continue circulating for further grinding.
2.1.2 Performance Characteristics
Advantages:
- Simple structure
- Easy operation, disassembly, cleaning, and Bakım
- Automatic internal sınıflandırma
Disadvantages:
- High-speed particles strongly impact, rub, and shear against the chamber wall, causing severe wear
- Potential product contamination, especially when grinding very hard materials such as silicon carbide or silicon dioxide
- Grinding chamber must be lined with ultra-hard, wear-resistant materials (e.g., corundum, zirconia, super-hard alloys)
- Not suitable for ultrafine grinding of ultra-hard or high-purity materials

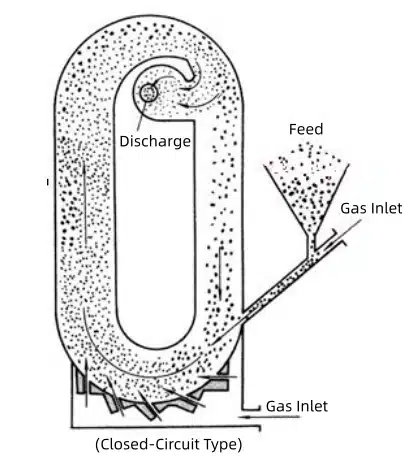

2.2 Circulating Pipe Jet Mill
The circulating pipe jet mill, also known as a vertical annular jet mill, also features internal classification. It can be divided into constant cross-section and variable cross-section designs. The most widely used type is the JOM (O-type) variable cross-section circulating pipe jet mill.
2.2.1 Working Principle
After entering the grinding zone at high speed, particles are driven by high-pressure air to move along an O-shaped pipeline. Due to differences in the radii of the inner and outer paths, particles at different layers move at different speeds.
This relative motion causes friction, shear, and collision between particles. Under centrifugal force, dense particle streams stratify: coarse particles migrate outward, while fine particles move inward, converge, and are discharged through the outlet. Coarse particles remain in circulation for continued grinding.
2.2.2 Performance Characteristics
Advantages:
- Simple main unit structure
- Easy operation
- Simultaneous grinding and automatic classification
- Compact equipment size with relatively large production capacity
- Product fineness can reach 3–0.2 μm
Disadvantages:
- Severe erosion and wear of the inner pipe wall caused by airflow and material
- Not suitable for processing high-hardness materials
- Lowest grinding efficiency and highest energy consumption among jet mill types

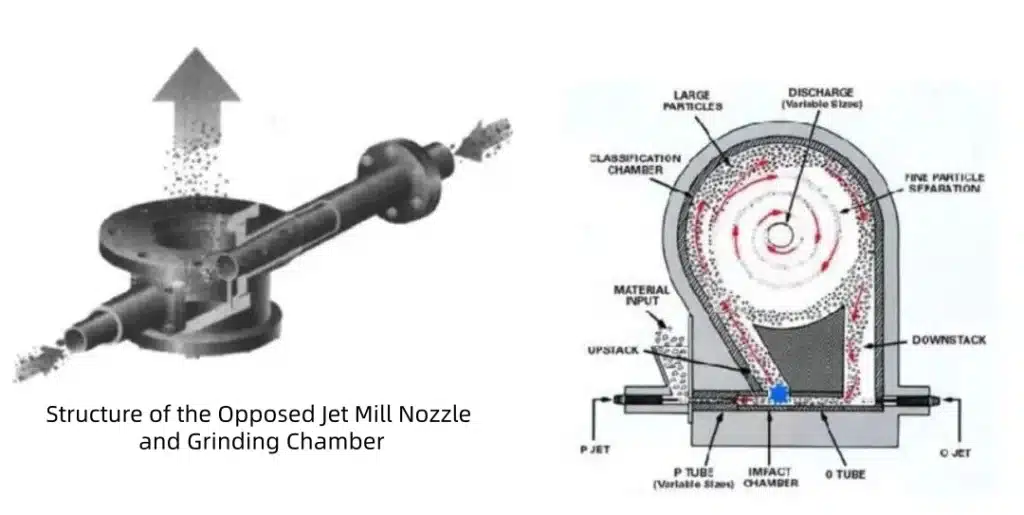

2.3 Opposed Jet Mill
The opposed jet mill, also known as a counter-flow jet mill, is a device that achieves ultrafine grinding through direct particle-to-particle collision in supersonic airflow.
2.3.1 Working Principle
Material enters from the hopper and is injected into the grinding chamber by high-velocity airflow from feeding nozzles. At the same time, coarse particles from the sınıflandırıcı are re-introduced into the grinding chamber through grinding nozzles.
Particles collide head-on and are pulverized, then carried upward by the airflow into the classification chamber. A strong vortex flow forms inside the classifier, separating particles by size. Coarse particles move outward and return to the grinding chamber, while fine particles exit through the central outlet for gas-solid separation and collection.
2.3.2 Performance Characteristics
Advantages:
- Large production capacity
- Minimizes pipe wall wear and product contamination
- Suitable for producing ultrafine powders of high-hardness materials
Disadvantages:
- Complex structure and large equipment size
- High energy consumption
- Some wear still occurs in the grinding chamber and pipelines
Because grinding relies mainly on particle-to-particle collision from the first impact, opposed jet mills significantly reduce wall wear and contamination, making them suitable for harder materials.

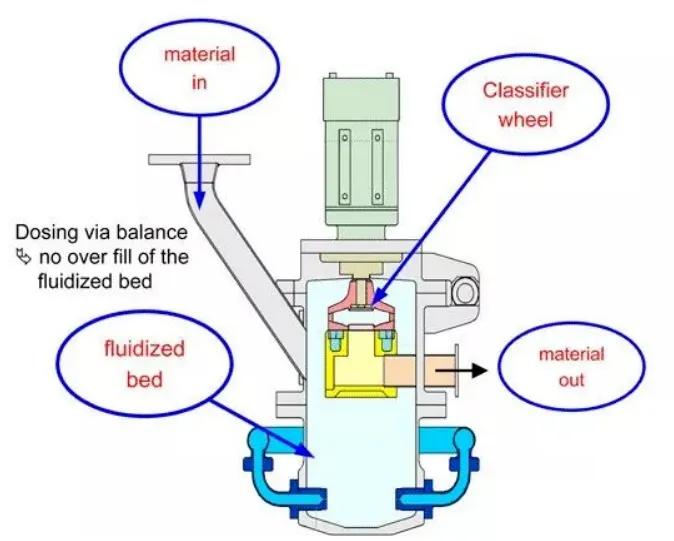

2.4 Fluidized Bed Jet Mill
The fluidized bed opposed jet mill combines the opposed jet grinding principle with a fluidized bed and expanding gas jets. It is considered one of the most advanced jet milling technologies due to its energy efficiency, high capacity, low wear, compact structure, and minimal temperature rise.
2.4.1 Working Principle
Material enters the feed hopper through a valve and is conveyed into the grinding chamber by a screw feeder. Compressed air is injected through opposing nozzles, fluidizing the material.
Accelerated particles converge at the nozzle intersection points, where they undergo intense collision, friction, and shear. The ground material is carried upward to a turbine ultrafine classifier. Fine particles are discharged as product, while coarse particles return along the chamber wall for further grinding. Exhaust gas is removed through a dust collector.
2.4.2 Performance Characteristics
Advantages:
- High grinding efficiency and low energy consumption
Multi-angle particle collisions produce strong interaction forces, allowing particles to fully absorb supplied energy with minimal jet power loss.
The integration of fluidized bed technology and a horizontal turbine classifier enables rapid removal of fine particles, reducing over-grinding.
Compared with disc jet mills, average energy consumption is reduced by 30–50%. - Low wear and minimal contamination
From the first impact, grinding is dominated by particle-to-particle collisions, significantly reducing chamber wall wear. - Compact equipment and small footprint
Under the same capacity, fluidized bed jet mills are 10–15% smaller in volume and require 15–30% less installation space than disc jet mills. - High degree of automation
- Low noise
- Large production capacity
- Suitable for large-scale industrial production
Disadvantages:
- Continuous high-speed impact on classifier blades causes significant wear when processing ultra-hard materials
Applications:
- High-hardness materials
- High-purity materials
- Difficult-to-grind layered non-metallic minerals
- Heat-sensitive materials
- Materials with dense pore structures
2.5 Target Jet Mill
2.5.1 Working Principle

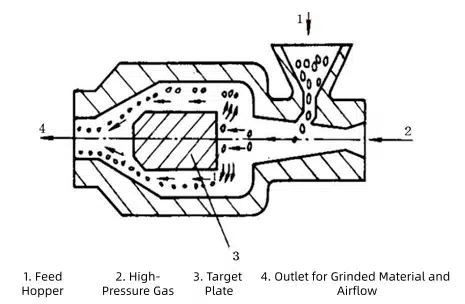

The working principle of a target jet mill is based on the high-speed impact between material particles and a fixed target surface. Material is mixed with compressed air in the feeding pipe and accelerated together. The mixed stream is then discharged through a specially designed nozzle and directed toward a fixed impact target, where the particles are crushed upon collision.
During operation, the airflow is accelerated through the nozzle to form a supersonic jet before entering the grinding chamber. The material is simultaneously accelerated and introduced into the chamber for synchronized grinding. Since the nozzle is installed at an acute angle relative to the grinding chamber, the high-velocity jet induces a circulating motion of particles within the chamber. Pulverization occurs through repeated impact, collision, friction, and shear between particles and between particles and the fixed target plate or chamber wall.
2.5.2 Performance Characteristics
Advantages:
- High grinding efficiency
By combining high-velocity airflow with direct impact on the target surface, target jet mills can efficiently reduce materials to the desired particle size. The achievable fineness can reach the micron scale, making them suitable for applications with stringent powder quality requirements. - Narrow particle size distribution
Due to relatively mild inter-particle interaction during grinding, target jet mills produce powders with uniform and narrow particle size distribution, avoiding excessive wear, agglomeration, and compression commonly seen in conventional grinding equipment. - Wide application range
Suitable for processing a variety of powder materials, including viscous materials, fibrous materials, and certain metal powders, demonstrating strong potential for industrial applications. - Low energy consumption
Optimized airflow dynamics and target design improve grinding efficiency while reducing overall energy consumption, meeting modern energy-saving and emission-reduction requirements. - Stable and reliable operation
With a rational structural design, target jet mills offer stable performance, long service life, and convenient maintenance.
Disadvantages:
- Material hardness limitations
When processing very hard materials such as silicon dioxide or silicon carbide, high-speed particle movement can cause severe impact, friction, and shear against the chamber wall, leading to equipment wear and potential product contamination. Material hardness must therefore be carefully considered when selecting this type of jet mill. - Limited production capacity
Although grinding efficiency is high, the inherent working principle and structure generally result in lower throughput. For large-scale, high-output applications, other jet mill types may be more suitable. - Higher cost
Manufacturing and maintenance costs are relatively high, which may limit adoption in applications with strict cost constraints.
Below is a clear, professional, and SEO-optimized English translation of the content you provided.
The wording is suitable for Epic Powder Machinery’s official website, aligned with industrial terminology, and structured for search engine visibility.
III. Working Principles and Characteristics of Different Jet Mills
3.1 Flat (Disc) Jet Mill
The flat jet mill, also known as the disc jet mill, was successfully developed by Fluid Energy Company (USA) in 1934. It is the earliest developed and most widely used jet mill in industrial applications.
3.1.1 Working Principle
Material is accelerated through the feeding inlet by the nozzle of a jet feeder and introduced into the grinding chamber. Driven by a rotating airflow, particles undergo mutual collision, friction, and shear, resulting in size reduction.
Fine particles are carried by the airflow to the central outlet pipe of the grinding chamber and then enter the cyclone separator, where they move downward in a spiral path and are collected in the hopper. Exhaust gas is discharged through the exhaust pipe. Coarse particles are thrown toward the chamber wall by centrifugal force and circulate back for further grinding.
3.1.2 Performance Characteristics
Advantages:
- Simple structure
- Easy operation
- Convenient disassembly, cleaning, and maintenance
- Automatic internal classification
Disadvantages:
- At high particle velocities, materials moving with the airflow strongly impact, rub, and shear against the inner wall of the grinding chamber, causing serious wear
- Potential powder contamination, especially when processing very hard materials such as silicon carbide and silicon dioxide
- Grinding chamber linings must be made of ultra-hard, wear-resistant materials, such as corundum, zirconia, or super-hard alloys
- Not suitable for ultrafine grinding of ultra-hard or high-purity materials
3.2 Circulating Pipe Jet Mill
The circulating pipe jet mill, also known as a vertical annular jet mill, features internal classification. It can be divided into constant cross-section and variable cross-section types. The most commonly used is the JOM series (O-type) variable cross-section circulating pipe jet mill.
3.2.1 Working Principle
After entering the grinding zone at high speed, material particles are driven by high-pressure air to move along an O-shaped pipeline. Due to different radii between the inner and outer paths, particles in different layers follow different trajectories and velocities.
This relative motion causes friction, shear, and collision between particles. Under centrifugal force, dense particle streams stratify: coarse particles migrate outward, while fine particles concentrate inward and are discharged through the outlet. Coarse particles remain in circulation for continued grinding.
3.2.2 Performance Characteristics
Advantages:
- Simple main unit structure
- Easy operation
- Simultaneous grinding and automatic classification
- Compact equipment size with high production capacity
- Excellent product fineness, reaching 3–0.2 μm
Disadvantages:
- Severe erosion and wear of the inner pipe wall caused by airflow and material
- Not suitable for processing high-hardness materials
- Lowest grinding efficiency and highest energy consumption among jet mill types
3.3 Opposed Jet Mill
The opposed jet mill, also known as a counter-flow jet mill, is a device that achieves ultrafine grinding through direct particle-to-particle collision in supersonic airflow.
3.3.1 Working Principle
Material enters from the hopper and is injected into the grinding chamber by high-speed airflow from feeding nozzles. At the same time, coarse particles falling from the classifier are re-injected into the grinding chamber through grinding nozzles.
After head-on collision and pulverization, particles are carried upward by the airflow into the classification chamber. Inside the classifier, a strong vortex flow forms, separating particles by size. Coarse particles move to the outer zone and return to the grinding chamber for further processing, while fine particles are discharged through the central outlet for gas-solid separation and product collection.
3.3.2 Performance Characteristics
Advantages:
- Large production capacity
- Avoids pipe wall wear and contamination from wall materials
- Capable of producing ultrafine powders from high-hardness materials
Disadvantages:
- Complex structure and large equipment size
- High energy consumption
- Some wear still occurs in the grinding chamber and pipelines due to gas-solid flow
By relying primarily on particle-to-particle collision from the first impact, opposed jet mills significantly reduce wall wear and product contamination, making them suitable for processing harder materials.
Below is a professional, SEO-optimized English translation of Sections 3.4 and 3.5, written in a technical yet marketing-friendly tone suitable for Epic Powder Machinery’s website. Terminology is standardized for international audiences and aligned with powder processing industry norms.
3.4 Fluidized Bed Jet Mill
The fluidized bed opposed jet mill combines the opposed jet grinding principle with an expanding gas jet in a fluidized bed. Its advantages are mainly reflected in energy savings, high processing capacity, low wear, compact structure, small footprint, and minimal temperature rise, making it one of the most advanced jet milling technologies currently available.
3.4.1 Working Principle
Material enters the feed bin through a valve and is conveyed into the grinding chamber by a screw feeder. Compressed air is injected into the grinding chamber through opposing nozzles, causing the material to become fluidized.
The accelerated particles converge at the intersection points of the nozzles, where they undergo intense particle-to-particle collision, friction, and shear, resulting in pulverization. The ground material is carried upward by the airflow into a turbine ultrafine classifier. Fine particles are discharged through the outlet as finished product, while coarser particles return along the chamber wall to the grinding zone for further processing. The exhaust gas is discharged through a dust collection system.
3.4.2 Performance Characteristics
Advantages:
- High grinding efficiency and low energy consumption
Particles carried by the airflow collide at multiple angles with strong interaction forces. The complex stress conditions allow particles to fully absorb external energy with minimal jet power loss.
By combining fluidized bed technology with a horizontal turbine ultrafine classifier, fine particles are discharged promptly, reducing energy loss caused by over-grinding.
Compared with disc-type jet mills, average energy consumption is reduced by 30–50%. - Low wear and minimal contamination
From the first impact, grinding is dominated by particle-to-particle collisions, resulting in significantly less impact on the chamber walls. - Compact structure and small footprint
Under the same production capacity, fluidized bed jet mills have 10–15% smaller equipment volume and require 15–30% less installation space than disc jet mills.
Disadvantages:
- Continuous high-speed impact on the classifier blades leads to severe wear when processing ultra-hard materials.
Applications:
- High-hardness materials
- High-purity materials
- Difficult-to-grind layered non-metallic minerals
- Heat-sensitive materials
- Materials with dense pore structures
3.5 Target Jet Mill
3.5.1 Working Principle
In a target jet mill, the material is mixed with the incoming airflow inside the feed tube and accelerated together. After passing through the nozzle, the high-speed mixed stream is ejected and strikes a fixed impact target positioned in front of the nozzle, causing particle breakage.
During this process, the airflow is accelerated through a specially designed nozzle into a supersonic jet before entering the grinding chamber. The material is simultaneously accelerated and fed into the chamber for synchronized grinding. Since the nozzle is installed at an acute angle relative to the grinding chamber, the high-speed jet drives the material into a circulating motion within the chamber. Particles undergo mutual collision, impact with the fixed target plate, friction, and shear, resulting in effective pulverization.
3.5.2 Performance Characteristics
Advantages:
- High grinding efficiency
By utilizing the combined effects of high-velocity airflow and impact with the target surface, target jet mills can efficiently grind materials to the required particle size, achieving fineness at the micron level, making them suitable for applications with stringent powder requirements. - Narrow particle size distribution
Due to relatively low inter-particle interaction forces during grinding, target jet mills produce powders with uniform particle size distribution, avoiding excessive wear, agglomeration, and compression commonly seen in traditional milling equipment. - Wide application range
Suitable for processing various powder materials, including difficult-to-grind viscous materials, fibrous materials, and certain metal powders, demonstrating strong industrial application potential. - Low energy consumption
Optimized airflow dynamics and target surface design improve grinding efficiency and reduce energy consumption, meeting modern energy-saving and emission-reduction requirements. - Stable and reliable operation
With a rational structural design, target jet mills operate stably, offer long service life, and are easy to maintain.
Disadvantages:
- Material hardness limitations
When processing high-hardness materials such as silicon dioxide or silicon carbide, particles moving at high speed with the airflow can cause intense impact, friction, and shear against the chamber walls, leading to chamber wear and potential product contamination. Therefore, material hardness must be carefully considered when selecting a target jet mill. - Limited throughput
Although target jet mills offer high grinding efficiency, their working principle and structural design generally result in lower production capacity. For large-scale production, other types of jet mills may be more suitable. - Higher cost
Manufacturing and maintenance costs are relatively high, which may limit their application in cost-sensitive industries.
